Vector 3.6M (#0096)

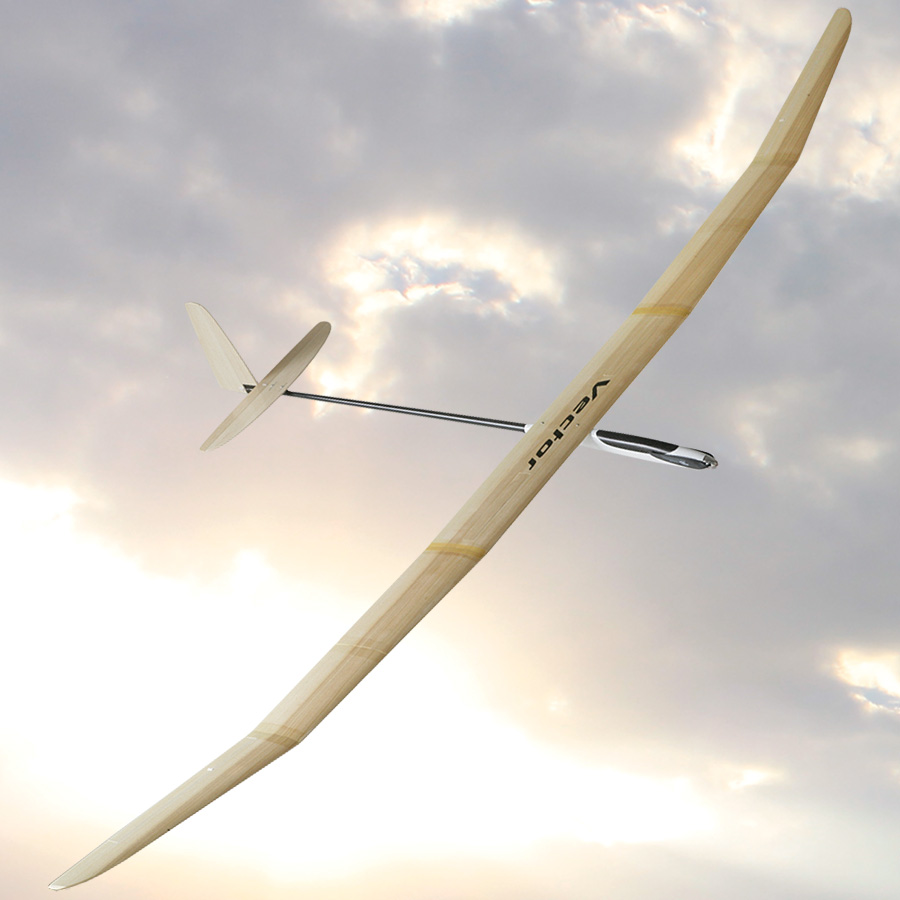

Vector 3.6M – F5J class ultra light weight electro-glider. It's clean low drag design provides excellent air penetration with wide range of speed and flying weight ~1200 g (~42 oz.) makes it an ultimate thermal electro-glider. This original, and very modern construction is a statement to years of experience in designing and active competition.
The fuselage pod and vertical stabilizer are made from pre-painted, molded, composite materials (epoxy/glass-carbon-fiber).
The fuselage pod features removable canopy for easy access to radio and drive gear and is 2.4GHz friendly.
Its strong tapered tail boom is made of carbon-glass-fiber composite.
The wing cores are precision cut from high-density white polystyrene foam and for superb strength wings have molded in carbon/glass composite spars.
The black poplar veneer is bonded to the foam with aircraft industry grade epoxy in high pressure mold for perfect airfoil fidelity and warp-free wing. Our original 3-segments wing design is very strong and convenient, precut pockets for the spoilers and internally hinged ailerons are minimizing building time. The horizontal stabilizer with pre-hinged elevator and rudder are made from selected balsa wood and fully laminated. The removable horizontal stabilizer and 3-segment wing allows easy storage and transport flexibility.

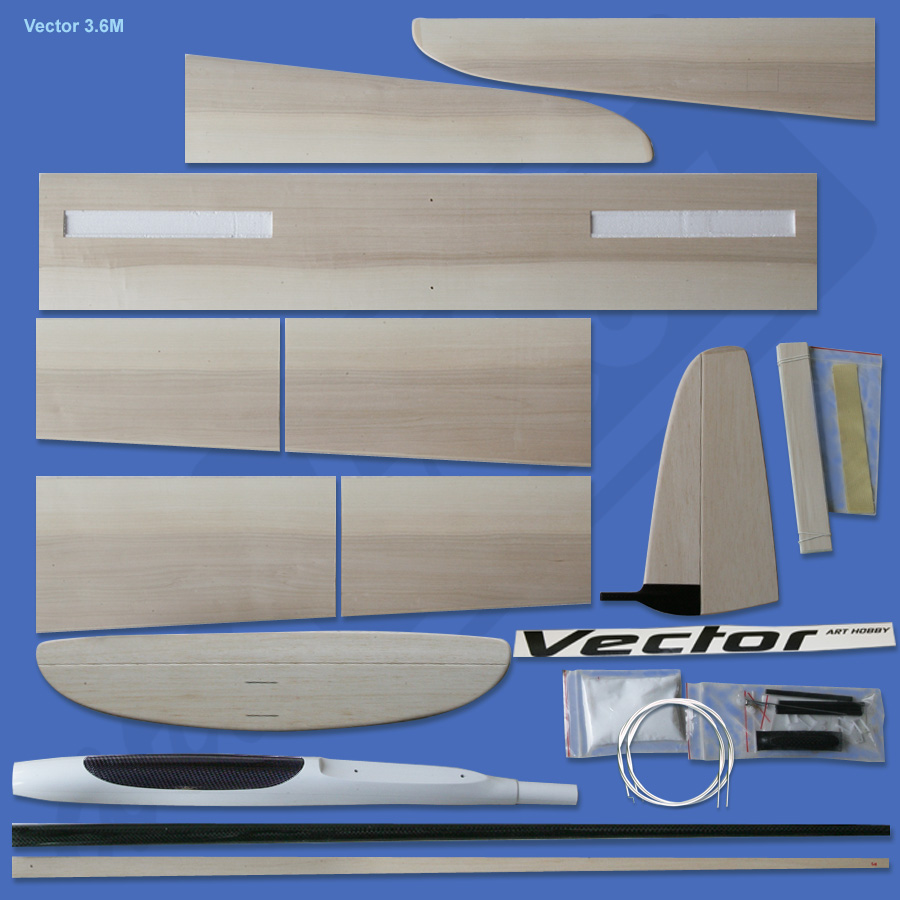

Kit contains:

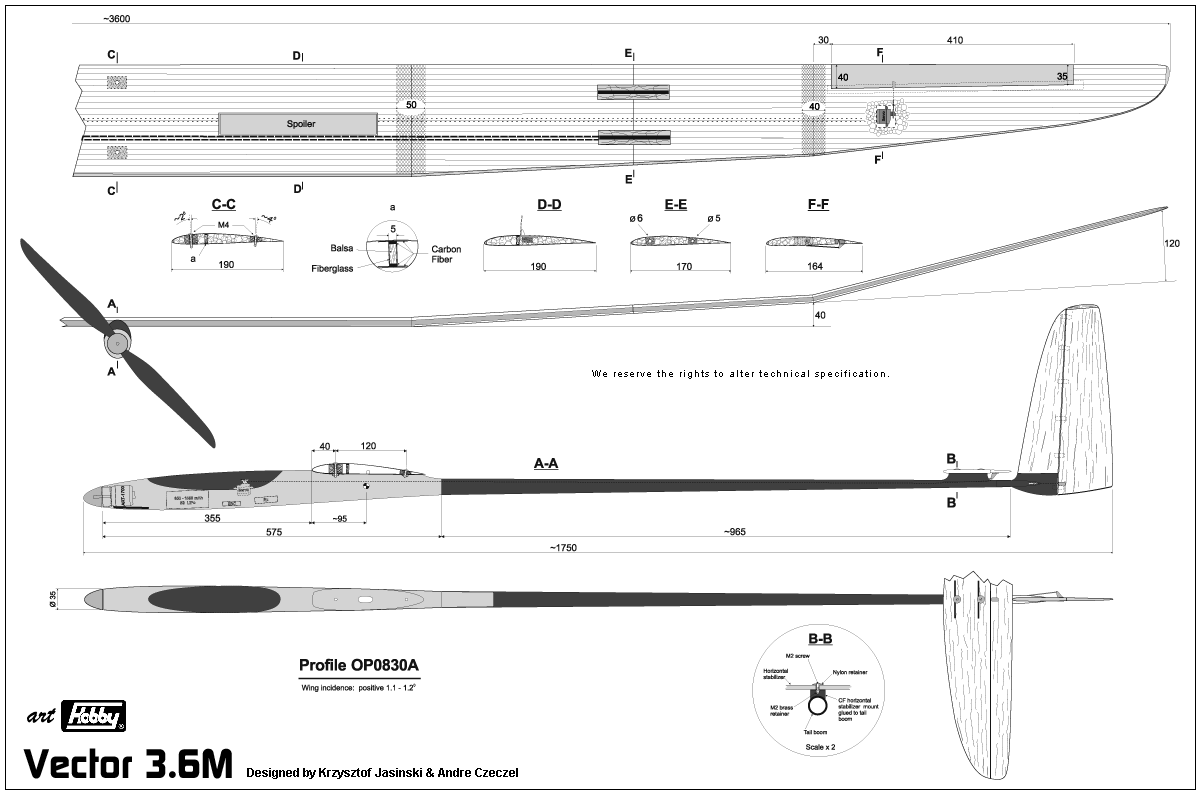

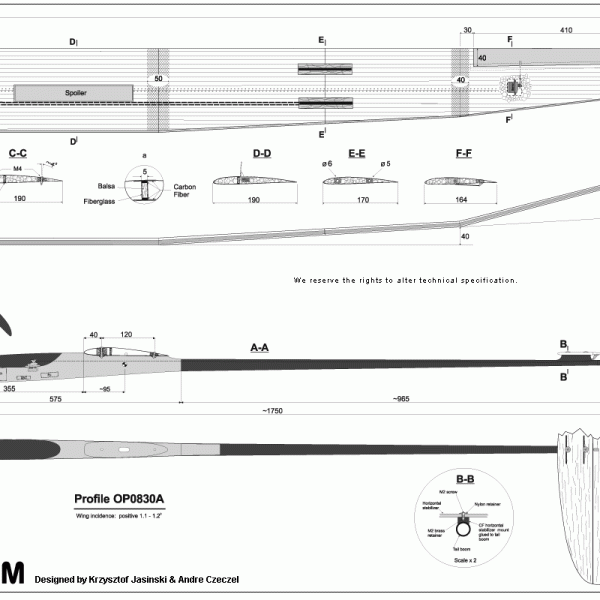

model, plans, step by step instructions, all necessary hardware and glider name wing sticker.

There's a 3-8 day shipment delay for 2,5M+ models.

$ 546.51

Dostępne:

In stock

Description

Wing span 3600 mm / 141.73 in.
Length ~1750 mm / ~68.90 in.
Wing area 57 dm² / 884 sq.in.
Wing airfoil OP0830A-modified
Glider weight ~800 g / ~28.07 oz.
Weight in flight ~1200 g /~42.10 oz.
Wing load ~21.05 g / dm².

RECOMMENDED:
Radio 7+CH.
Receiver 7+ch. Optima-7, Maxima-9, similar
Ailerons 2 x 7115TH
Spoilers 2 x 7115TH / JX 0903MG
Elevator 1 x HS-65MG, 5065MG, JX 0903MG
Rudder 1 x HS-65MG, 5065MH
Motor ART-1700, ART-1900
ESC 35A (Talon)
Spinner 35 mm
Propeller 15×6 CAM / 14×8 CAM
Battery 850, 1050, 1550 mAh, 3-cell, LiPo
Motor Mount 35mm (#M01004)
4-Pin Connector
Lacquer x 2
Servo Covers

Additional information

Weight 1.3 kg
